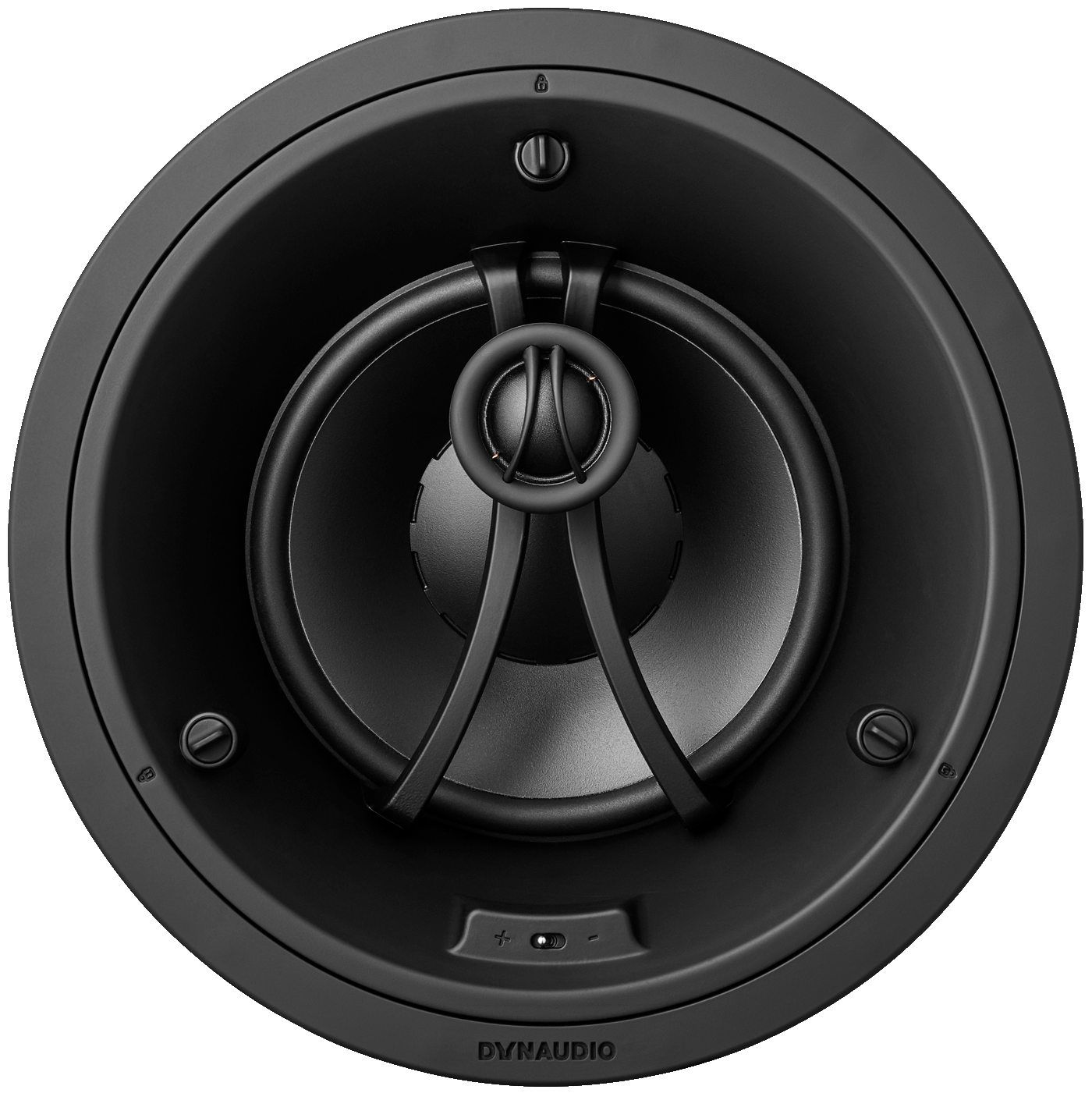

S4-C80
想要大音量的回放效果?更具震撼力的S4-C80一定能如您所愿。
在较大的房间里,只有大音量回放才能让您享受到充满包围感的声音表现。丹拿定制S4-C80入顶式扬声器,让声音充盈每一个角落,再大的空间也能让声音显得丰富而饱满。虽然S4-C80采用了许多与S4-C65一样的优良设计,比如可以根据房间的声学条件进行360度调整,但它最大的亮点是搭载了尺寸更大的20厘米中音/低音单元,从而为您呈现更具震撼力的低音,更出色的低音下潜,以及更大音量的回放效果。
与紧凑型S4-C65一样,S4-C80搭载的28毫米织物软球顶高音单元性能卓越,可以回放更高频段的高频信号,此外,您也可以根据自己的需要旋转高音单元,从而调整扬声器的声音辐射方向。
虽然大尺寸的S4-C80入顶式扬声器需要更大的安装空间,但您完全无需为此担心。因为S4-C80采用可上漆的磁吸式网罩,并提供圆形和方形两种规格,您可以让它成为室内装修的“点睛之笔”,也可以让它与室内装修“融为一体”。


S4-C80
技术规格
- 在售情况 在售
- 分类 定制安装
- 系列 Studio
- 种类 在天花板中扬声器
- 灵敏度 (dB @ 2.83V/1m) 89
- 额定功率 100
- 长期承载功率 140
- 额定阻抗 (欧姆) 8
- 阻抗 (最小) 5
- 频响下限 (Hz ± 3dB) 45
- 频响上限(kHz ± 3dB) 20
- 分频设计 2-分频
- 高音单元 28 mm织物软球顶 ,可倾斜
- 中音单元/低音单元 20 cm MSP
- 高音单元增益选项 -3dB, 0dB, +3dB
- 直径 (毫米) 280
- 深度 (毫米) 163
- 圆形开孔尺寸 (毫米) 260
- 网罩材料 涂漆钢
- 网罩形状 圆形 (附带)/方形
- 网罩吸附方式 磁吸式
- 网罩表面工艺 白色(可上漆)
- 认证 CE认证
- 环保合规 RoHS
