Control 02

控制功能同样强,输出端口更丰富。

和 Control 01 一样,Control 02 也是功能齐全的 DSP 单元,支持 Dante、Thunderbolt、AES3 和 MADI 连接。
技术规格
下载

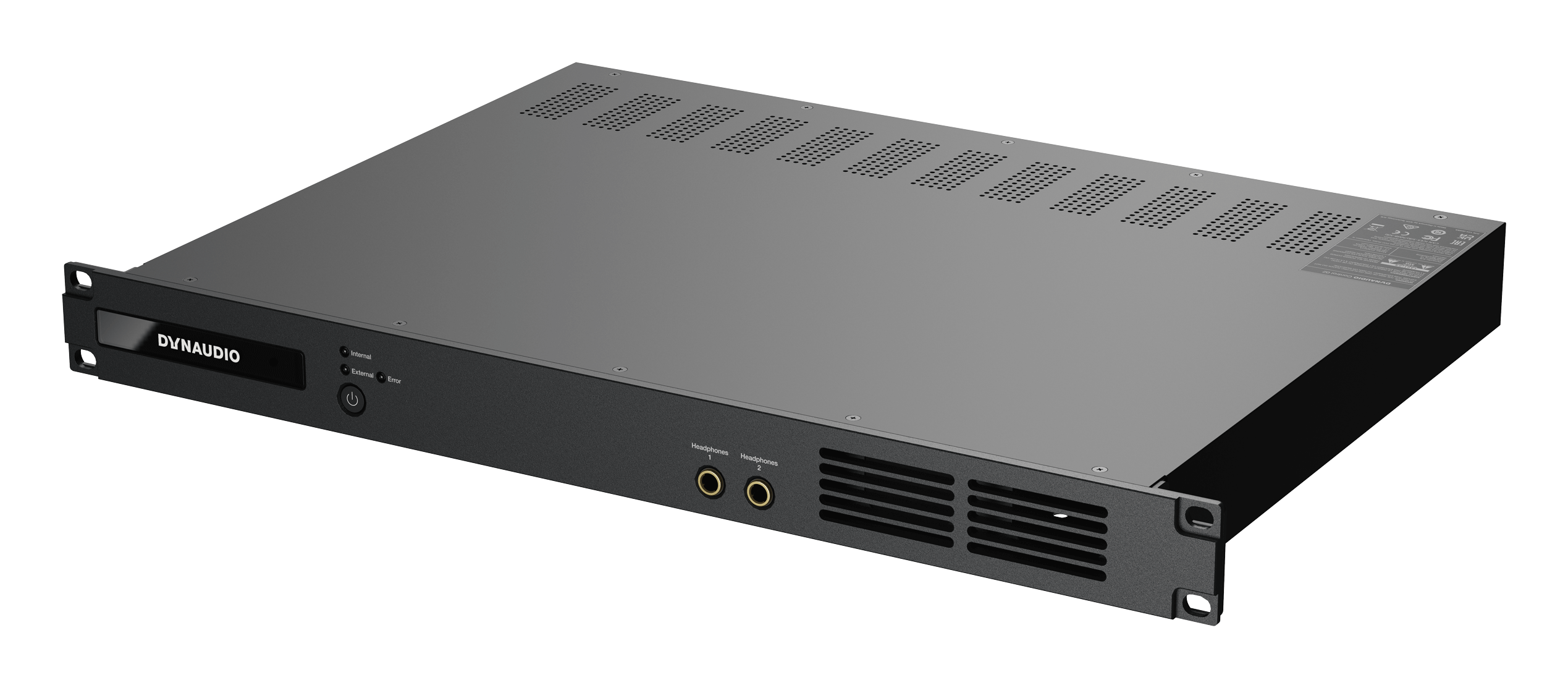

Control 02

丹拿 Control 02 除了具备 Control 01 的全部功能,还多了一项关键优势:8 个模拟输出端口可直接连接 LYD、BM 系列或其他带有模拟输入端口的监听音箱。

和 Control 01 一样,Control 02 也是功能齐全的 DSP 单元,支持 Dante、Thunderbolt、AES3 和 MADI 连接。此外,通过选择星形扩展模式,该控制器可以无缝集成到各种录音室中,从立体声混音到沉浸式杜比全景声配置都不在话下。

Control 02 外形小巧紧凑,具备扩展能力,提供了齐全的音频监听、路由和微调工具,专为需要灵活使用模拟端口来确保无损音质的工作流而设计。

连接  Control Link,轻轻一触即可让您的录音室系统开始运行,为最严苛的专业应用场景提供完整解决方案。

技术规格

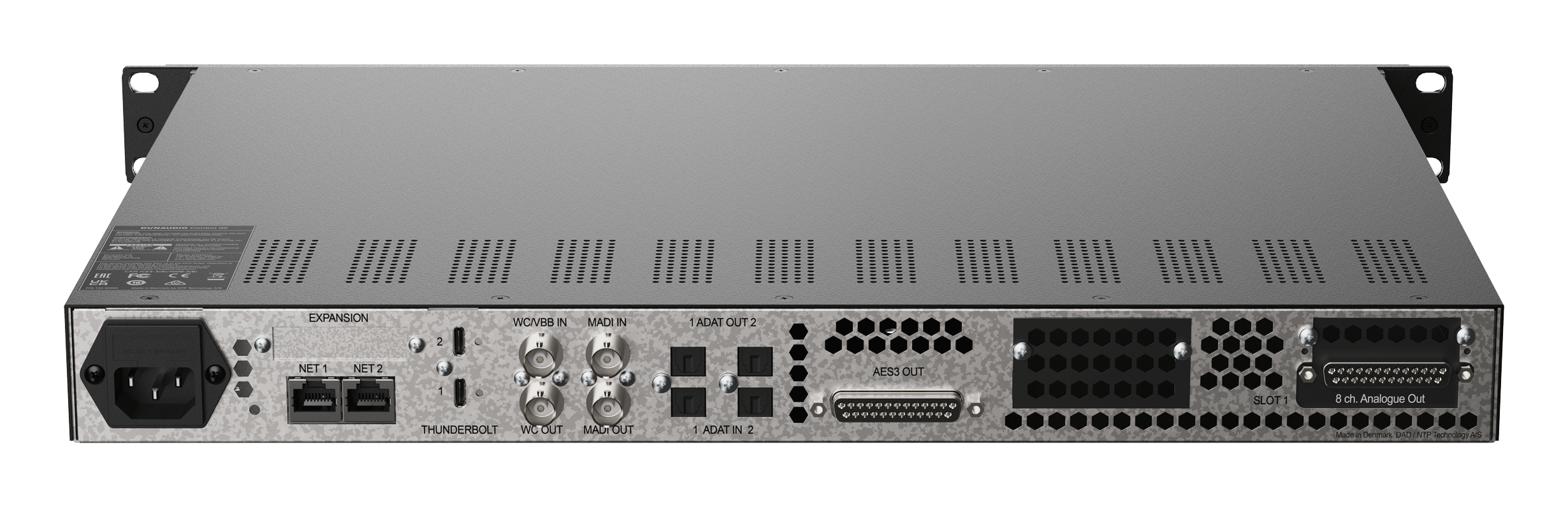

数字输入/输出
联网 2 个 RJ45 1000BASE-T, Dante, AES67
Thunderbolt 2 个 Thunderbolt 3 2 个 15 瓦 PD
ADAT Toslink 2 个输入,2 个输出 共 16 个通道,可配置为 S/PDIF
AES3 DB25 8 通道 AES3(16 个音频通道)
字时钟 2 个 BNC WC 输入/输出
MADI 2 个 BNC MADI 输入/输出



模拟输入/输出

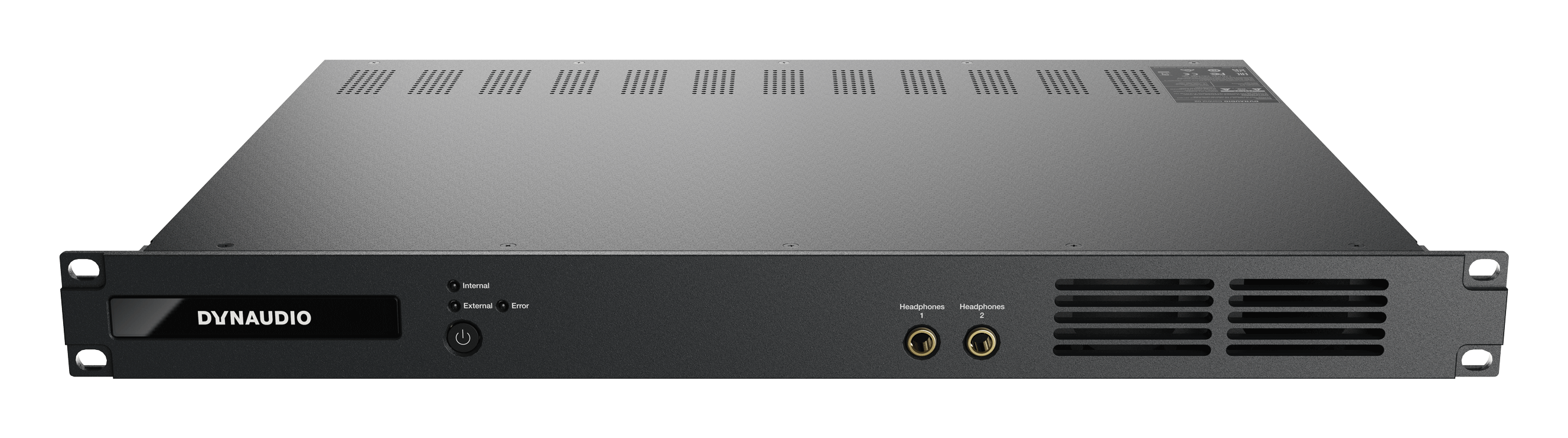

耳机 2 个 TRS(正面) 18-600 欧姆
扩展 DAD 扩展模块 1 个可用插槽



电源
C13 90-260 VAC(最大 120W)



尺寸
机箱标准 19 英寸,1 RU
厚度 32 厘米/12.6 英寸
宽度 43.5 厘米/17.2 英寸
重量 2.8 千克/6.5 磅



Dynaudio_Control02_ControlLink_01_1200x1200px
Dynaudio_Control02_03_1200x1200px
